Hydraulic cylinder, 700 bar

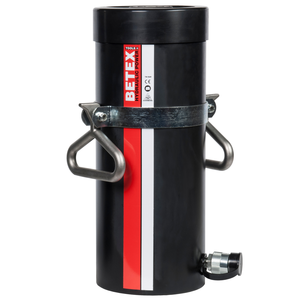

BETEX NSSS Standard cylinder, single-acting, spring return, 100T class
Nahrazeno
82310010
Produktové informace
Metrické
Imperiální
Technical data
100 | Capacity class (tons) | |
| sp | 260 mm | Stroke |
| Fa | 1.001 kN | Advance force, max. |
| pmax | 700 bar | Operating pressure, max. |
| Voil | 3.720 cm³ | Oil capacity |
| A | 448 mm | Height, retracted |
| B | 708 mm | Height, extended |
| D | 177 mm | Outer diameter |
| E | 135 mm | Cylinder bore diameter |
| F | 105 mm | Plunger diameter |
| H | 40 mm | Base to advance port |
| J | 70 mm | Saddle diameter |
| K | 3 mm | Saddle protrusion from plunger |
| U | 139 mm | Base mounting holes, bolt circle |
| V | 3/4"-10 UNC | Base mounting holes, thread (UNC) |
| Z | 25 mm | Base mounting holes, thread depth |
| W | 6⅞"-12 UN | Collar thread (UN) |
| X | 45 mm | Collar thread, length |
| ≈m | 72,6 kg | Hmotnost |
Additional information
Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap | Product specifics |
Stahování:
Vaše aktuální varianta produktu
| Series | NSSS | Standard cylinder |
| Version | 100T | Capacity class 100 |
